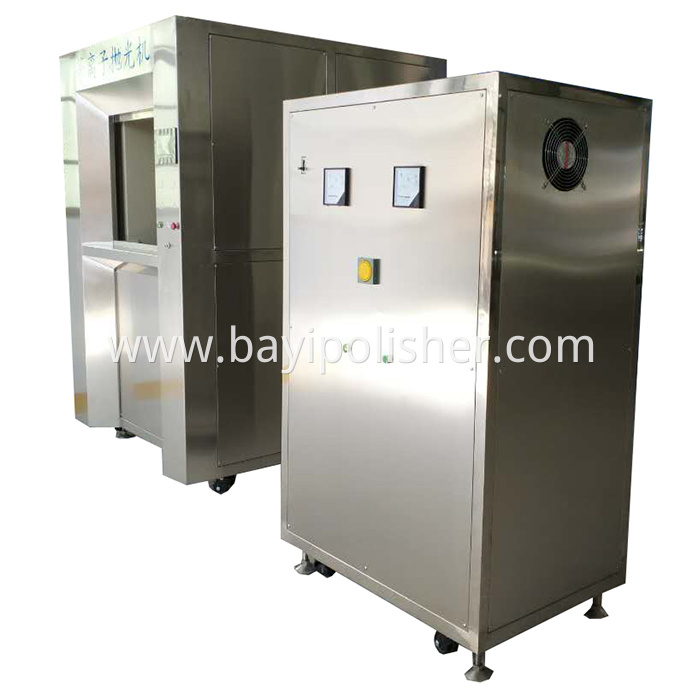

Plasma polishing deburring machine 800A
$39600≥1Piece/Pieces
Model No.: BY-800A
Brand: bayi
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Selling Point: Automatic
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support
Applicable Industry: Manufacturing Plant
Selling Units | : | Piece/Pieces |
Single package size | : | 170cm*175cm*210cm |
Single gross weight | : | 2000kg |
Quantity(Piece/Pieces) | 1 | >1 |
Est. Time(days) | 7 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

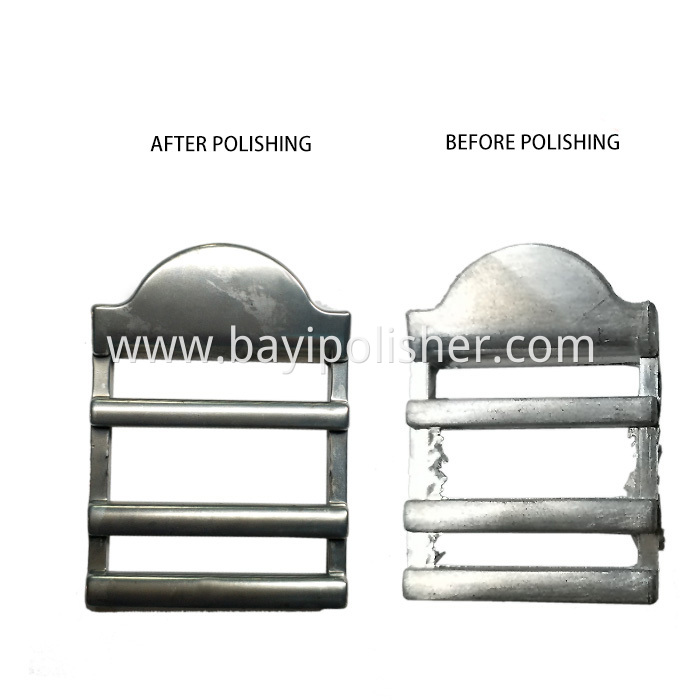

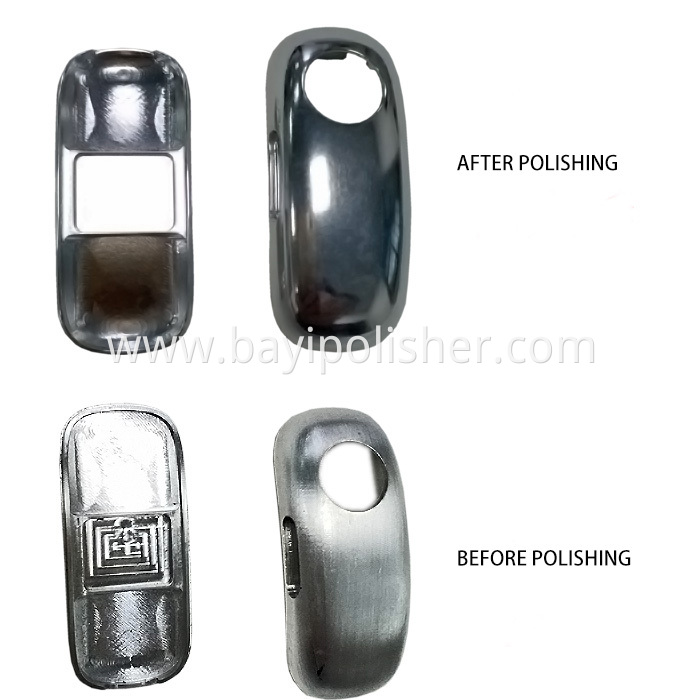

Plasma Polishing Deburring Machine is suitable for medium and large parts or small products with low output
● The main body of the inner groove
◆ Material: 3mm thick 316L stainless steel plate double-sided welding molding.
◆ Size: Length 1210mm width 850mm height 830mm
◆ Insulation: The inner slot and outer frame are insulated with 20mm rear paneled wood to effectively prevent safety accidents.
● Main body of the frame:
◆ Material: 50mm X 50mm X 2.0mm 304 stainless steel through welding molding.
◆ Dimensions: length 1700mm width 1750mm height 2100mm
◆ Operation panel: 2mm thick 304 stainless steel plate bent and welded
◆ Lifting door: 40mm X 40mm X 1.0mm 304 stainless steel square pass welded into the outer frame, and then use 1.2 thick 304 stainless steel plate bent and welded on the outside.
◆ Closed door plate: 0.8mm thick 304 stainless steel plate bending molding
● Transmission mode:
◆ Door drive:
It is fixed to the right and left of the lifting door with a direct 30 linear guide rail, and is fixed to the lifting door with a 30MULL linear slider with a linear guide rail and a 304 stainless steel chain. (Stepper motor for desktop)
◆ Hanger drive:
With a direct 30 linear guide rail fixed to the lifting frame around, with a 30MUL linear slider fixed to the lifting slide frame and linear guide rail, coupled with 304 stainless steel chain with a frequency converter to drive the deceleration motor to do the lifting action.
▼ Transmission mode: AC220V inverter drives the gear motor, gear motor
The drive chain drives the linear slider to open and close the door and lift the hanger
Move.
▼ Rack travel: 700mm
● Power supply (three-phase full bridge rectifier or three-phase inverter rectifier)
◆ Three-phase full bridge rectifier power supply (suitable for materials other than gold, silver and titanium)
◆ Three-phase full bridge rectifier
▼ Working parameters
Input: three-phase AC 380V±5%
Frequency: 50HZ
Output power: 30kw
Voltage: non-adjustable (with the influence of external network)
Current: max 100A
Cooling method: wind cooling
◆ Three-phase inverter power supply (suitable for gold, silver, titanium)
▼ Working parameters
Input: three-phase AC 380V±5%
Frequency: 50HZ
Output power: 30kw
Voltage: 0-400V adjustable constant voltage
Current: max 100A
Cooling method: wind cooling
● Temperature control: 316 seamless stainless steel heating tube is used for heating, temperature sensor and AD temperature module are used to read the temperature into PLC, and then the temperature is controlled by PLC and contactor.
● Water level control; Using float ball and micro switch, the micro switch signal is read into PLC, and the water refill solenoid valve is controlled by PLC operation.
● Air supply: external compressed air, through the throttle valve of the operation panel to control the compressed air into the bottom of the inner tank to stir the tank liquid action.
● Automatic turning: the rotary telescopic cylinder is inserted into the hanger tenon to achieve 180° turning (optional device).
● Automatic clamping: The use of special cylinders through the transmission rod to achieve automatic clamping (optional device).
● Electrical and control
◆ The system control module is controlled by Xinjie PLC module.
◆ The use of Willon 7-inch color touch screen (desktop 5-inch control one
Body machine).
◆ Can be purely manual operation, full process automatic operation or partial manual operation.
◆ Control cabinet distribution: Separate the control cabinet and DC power cabinet and place them separately (desktop machine as one).
● Venue layout
◆ Actual layout site size: length 5000mm× width 5000mm× height 2800mm (including the position of the sink, and the position of the upper and lower hanging table, excluding the position of the distillation drying tank and the mixing tower); The desktop machine is placed on the desktop.
◆ The height of the factory is not less than 2800mm.
● Surrounding requirements:
◆ Ensure that the compressed air pressure is more than 6kg/cm2.
◆ Tap water flow > 2t/hr pressure > 3kg/cm2.
◆ Power supply power supply wiring mode is three-phase and five-wire, voltage requirement 380V voltage fluctuation should not be high
At ±5%.
● Power distribution:
◆ The cable adopts 3+2 120 square
◆ The total control switch adopts 500A
(If you need to configure the distillation drying tank, you can choose the cable line 3+2 150 square 600A total control switch)
◆ Exhaust pipe: need to configure the diameter of 300PP exhaust pipe and PP exhaust fan or stainless steel exhaust fan.
