Brand: bayi
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Selling Point: Automatic
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
| Selling Units | : | Piece/Pieces |
| Single package size | : | 67.8cm*50.5cm*90.6cm |
| Single gross weight | : | 10kg |
The file is encrypted. Please fill in the following information to continue accessing it
| Quantity（Piece/Pieces） | 1 | >1 |
| Est. Time（days) | 7 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

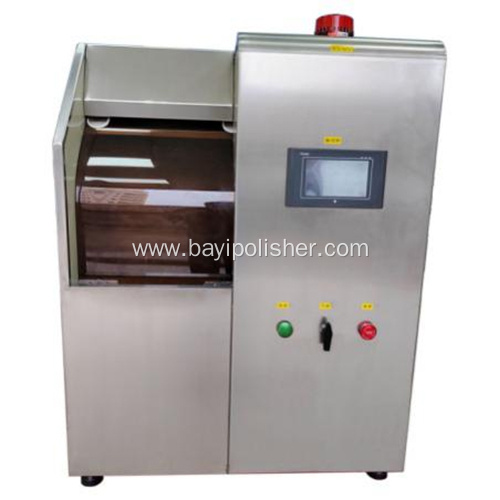

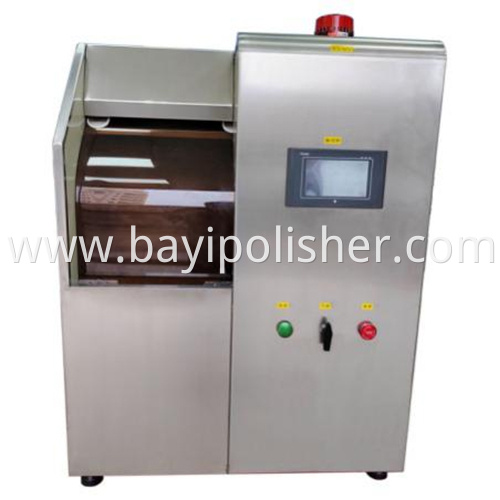

Suitable for small parts or small products with low output. Can be used in medicine

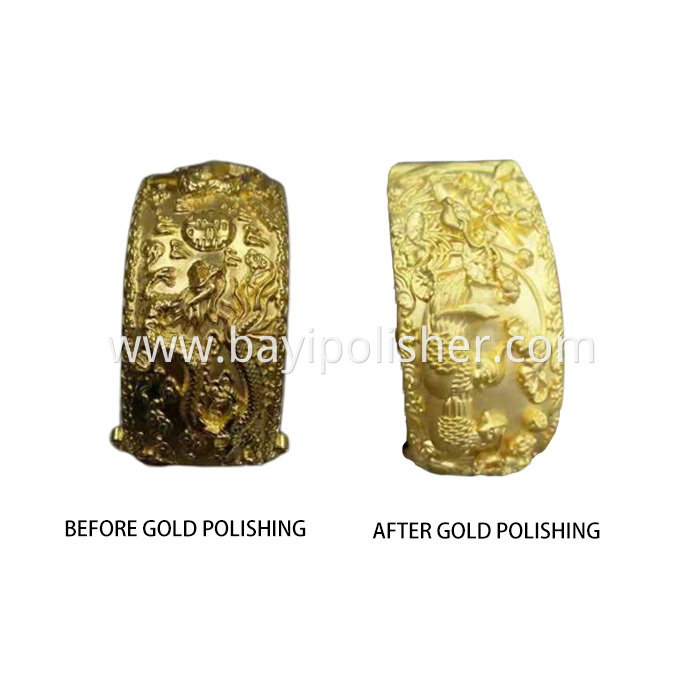

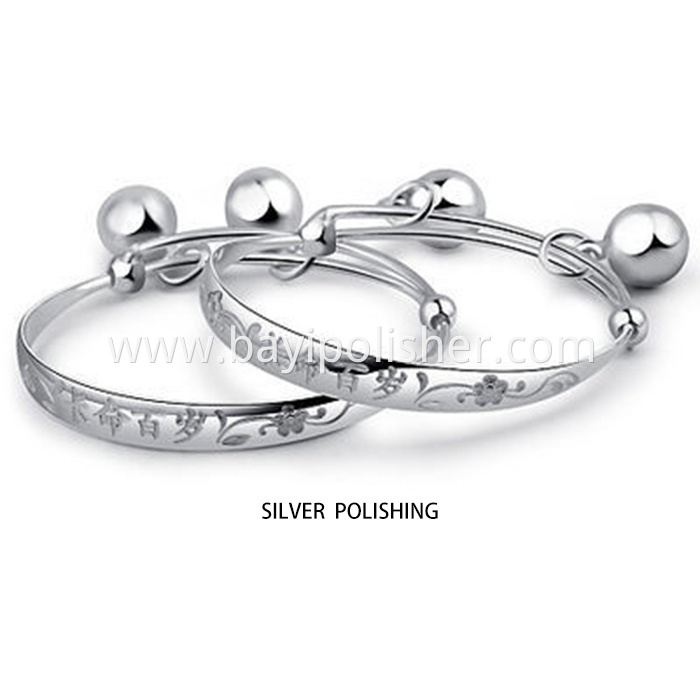

Treatment, confidential processing, 3D printing dentures, precious metal jewelry polishing
● The main body of the inner groove:
◆ Material ：3mm thick 316L stainless steel plate double-sided welding molding.
◆ Size ：L300nn W 300mm H 250mm
● Main body of the frame:
◆ Material ：15mmPP welded outer cladding stainless steel
◆ Overall dimension ：L 678nn W505mm H906mm
◆ Operation panel ：1.5mm thick 304 stainless steel plate bent welding
◆ way of opening the door：Using glass door and adding linear guide rail
● Transmission mode
◆ Door drive
The method of stepper motor plus linear guide rail and drive by driver is adopted
◆ Hanger drive
The method of stepper motor plus linear module and drive by driver is adopted
▼ Rack travel: 220mm
◆ Equipment DC power supply
Three-phase voltage regulator and full bridge rectifier are adopted, and closed-loop control is formed by PLC
● Temperature control ：
using 316 seamless stainless steel heating pipe heating, temperature sensor and AD temperature module to read the temperature into the PLC, through the PLC and contactor control.
● Water level control ：
using float ball and micro switch, the micro switch signal is read into PLC, and the water supply solenoid valve is controlled by PLC operation.
● The gas： is connected with compressed air, and the compressed air is controlled through the throttle valve of the operation panel into the bottom of the inner tank to stir the tank liquid.
● Electrical and control：
◆ Touch screen PLC adopts 5-inch central control machine.
◆ Can be purely manual operation, full process automatic operation or partial manual operation. ● Venue layout：
◆ The desktop machine is placed on the desktop, and it is recommended to have a hanging table and a simple cleaning sink around it
● Surrounding requirements:
◆ Ensure that the compressed air pressure is more than 6kg/cm2.
◆ Tap water flow > 2t/hr pressure > 3kg/cm2.
◆ Power supply requirements Power distribution mode is three-phase five wire,
voltage requirements
380V voltage fluctuation should not be higher than ±5%.
● Power distribution:
◆ The cable adopts 3+2 6 square
◆ The total control switch adopts 63A
(If you need to configure the distillation drying tank, you can choose 100A master control switch)
◆ Exhaust pipe: need to configure the diameter of 100PP exhaust pipe.
